Industrial Arduino PLC

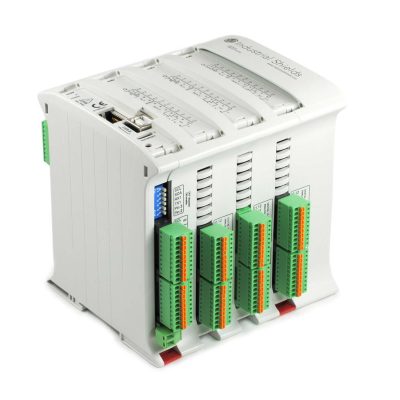

PLC-ARDUINO-M-DUINO

The first Arduino-based PLC controller designed for professional use by Industrial Sheilds. With the Arduino-based PLC series, you can have up to 20 inputs and outputs (I/Os).
It also includes multiple communication ports, providing greater flexibility and control.

The industrial controller family with 20 I/Os offers the possibility to expand up to 127 modules via I²C. This allows a total of up to 7,100 inputs and outputs through Master–Slave connections, in addition to sensors, actuators, and other external devices.

This industrial PLC can be easily programmed using the Arduino IDE platform or other compatible programming interfaces. Thanks to its open-source architecture, users can fully customize the PLC’s functions according to their specific needs.

🧩Advantages

  • Open-source design: Flexible programming without the need for any software license.
  • Modular expansion: Highly scalable with connectivity for up to 127 additional modules.
  • Easy integration: Multiple communication options such as Ethernet, RS-485, and USB.
  • Compact design: Ideal size for small control panels and laboratory systems.
  • Real-time monitoring: Instant tracking of input/output and variable statuses.
  • High compatibility: Direct connection with the Ardbox PLC series and Touchberry Pi.

⚙️ General Technical Specifications

  • I/O Count: 20 (configurable as analog/digital)
  • Expansion: Expandable up to 127 modules via I²C
  • Communication Ports: RS-485, RS-232, I²C, SPI, and USB
  • Power Supply: 12–24 V DC
  • Programming: Compatible with Arduino IDE and other programming languages
  • Mounting: Compact industrial housing compatible with DIN rail
  • Processor: Arduino Leonardo–based microcontroller

Arduino PLC Modelleri

🔹ARDBOX Analog Arduino PLC
  • Total of 20 I/O: 10 inputs (8 configurable as analog/digital + 2 isolated digital) and 10 outputs (3 digital + 7 configurable as analog/digital/PWM).
  • Uses an Arduino Leonardo–based processor and can be programmed directly through the Arduino IDE.
  • Equipped with RS-485, RS-232, SPI, and I²C communication ports.
  • Operates within a 12–24 V DC power range and typically consumes less than 30 W.
  • DIN-rail-mountable compact design ideal for small panels and testing systems.
🔹ARDBOX Arduino PLC Relay
  • 20 I/O capacity with a combination of digital inputs and relay outputs.
  • RS-485 port supports Modbus RTU communication.
  • I²C expansion allows scalability up to 127 modules.
  • Operates with a 24 V DC supply; low energy consumption (~300 mA).
  • Suitable for sensor management, motor control, and simple automation scenarios.
🔹WIS PLC Arduino
  • 28 I/O capacity: 14 digital inputs, 14 digital outputs, and 2 analog inputs.
  • Ethernet and dual RS-485 ports enable multiple communication options.
  • 24 V DC power supply with isolated design for industrial stability.
  • Modular expansion with I²C connectivity allows adding new modules.
  • DIN-rail or panel-mount compact form factor for flexible installation.
🔹M-DUINO Ethernet PLC Arduino 21
  • Total of 21 I/O: 13 digital inputs + 8 digital/analog outputs.
  • Ethernet, RS-232, RS-485, I²C, SPI interfaces provide multiple communication options.
  • 12–24 V DC power supply suitable for industrial use.
  • Modbus RTU/TCP compatibility ensures full integration with industrial systems.
  • Open-source Arduino Mega-based control unit for easy programming.
🔹M-DUINO Ethernet PLC Arduino 38R
  • 38 I/O capacity: 14 digital inputs, 11 digital outputs, and 4 analog inputs.
  • RS-485 and Ethernet ports enable remote connectivity.
  • Analog input resolution: 10-bit (0–10 V).
  • I²C expansion connector supports modular system building.
  • Optimized for smart manufacturing, energy management, and IoT projects.
🔹M-DUINO Ethernet PLC Arduino 38AR
  • High I/O capacity: 18 digital inputs, 21 digital outputs (12 relay + 9 transistor).
  • 2 Ethernet + 2 RS-485 ports provide advanced network connectivity.
  • Supports Modbus RTU/TCP, EtherCAT, and MQTT protocols.
  • Includes RTC (Real-Time Clock) and SD card slot.
  • Designed for large-scale data acquisition, monitoring, and control systems.
🔹M-DUINO Ethernet PLC Arduino 42
  • 42 I/O capacity (16 digital inputs, 16 digital outputs, 10 analog I/Os).
  • UPS support ensures safe shutdown during power outages.
  • Integrated RTC allows time-based automation tasks.
  • Dual Ethernet ports (LAN/WAN) enable gateway operation.
  • Arduino Mega 2560-based open-source architecture for industrial projects.
🔹M-DUINO Ethernet PLC Arduino 57R
  • Total 57 I/O capacity (combination of analog, digital, and relay outputs).
  • Ethernet, RS-485, RS-232 communication support included.
  • DIN-rail mountable for easy integration in industrial cabinets.
  • Supports advanced Modbus, MQTT, and TCP/IP protocols.
  • Operates on a 24 V DC supply for stable and reliable performance.
🔹M-DUINO Ethernet PLC Arduino 58
  • 58 I/O capacity: combination of digital, analog, and relay outputs.
  • Arduino Mega 2560 microcontroller with open-source programming support.
  • RS-485, RS-232, Ethernet, I²C, and SPI ports available.
  • Features real-time clock (RTC) and microSD card support for data logging.
  • High-performance modular design ensures stable operation in large industrial systems.
